Centrifugal Horizontal Multistage Pump

PRODUCT > MULTISTAGE PUMP > Centrifugal Horizontal Multistage Pump

Centrifugal Horizontal Multistage Pump

MH60/90/120/145/170


Applications: Ideal for pressure boosting in applications that require high rates and high heads.

Quiet running and with built-in self priming valve which makes suction up to 8m.


MOTOR

● Asynchronous,two poles.

● Protection class: IPX5

● Insulation class: F

● Continuous operation

● With thermal protector

● Max. Ambient temperature: 40℃

MATERIALS

● Incharge/Discharge mounting: Cast Iron

    (Cast Brassis available).

● Pump housing: Stainless steel.

● Diffuser: PPO

● Impeller: PPO(Stainless steel is available).

● Motor shaft: Stainless steel

   (Carbon steel is available)

● Mechanical seal: EPDM/Carbon/Ceramic

● O-ring: EPDM

OPTIONAL FEATURES

● Different voltages and frequencies are available.

● Different motor sizes are available.

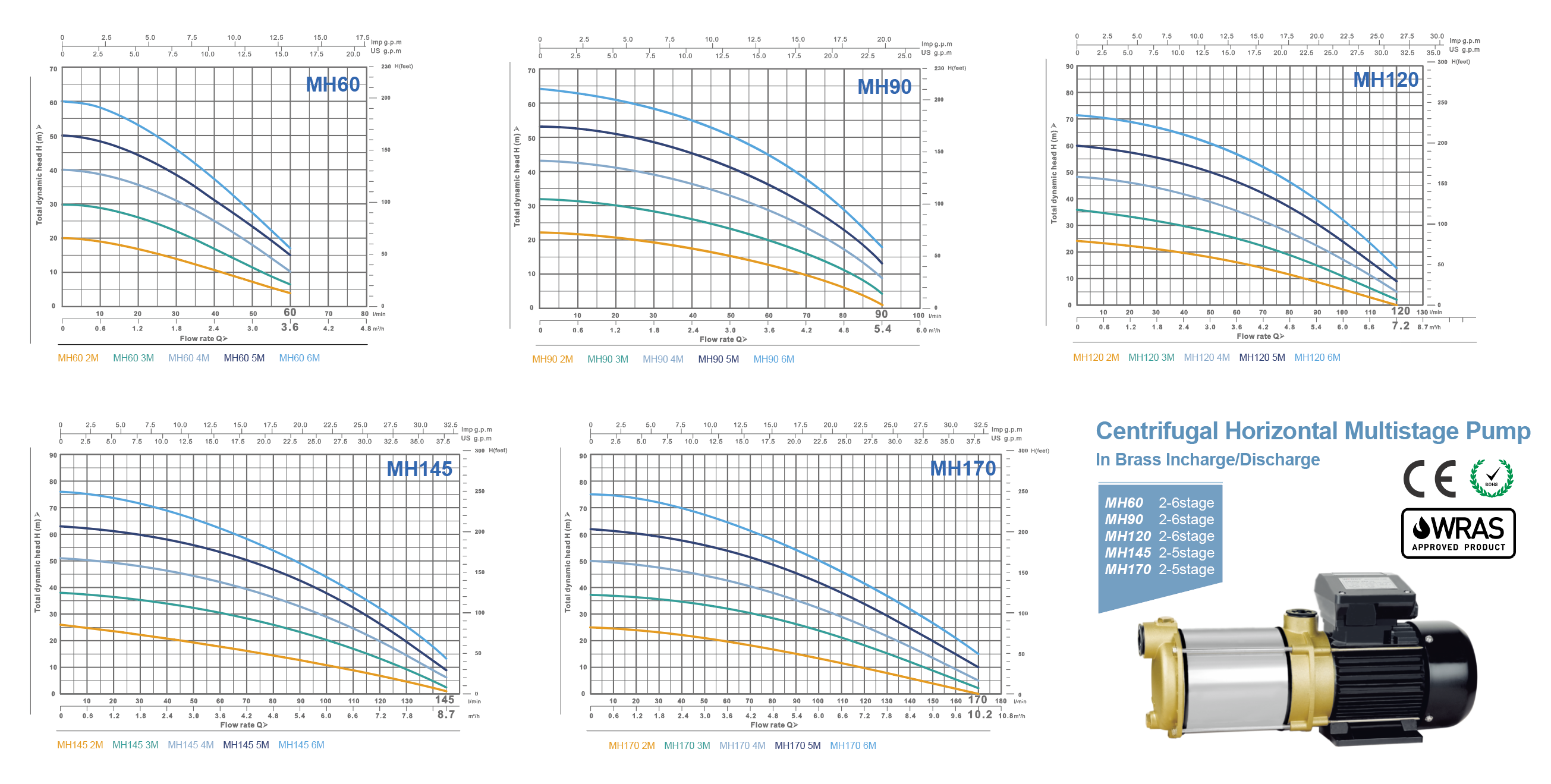

PERFORMANCE CHART AT n= 2850 min-1
